TJ-VB3000/SP-10000/SP Super Large Blow Molding Machine

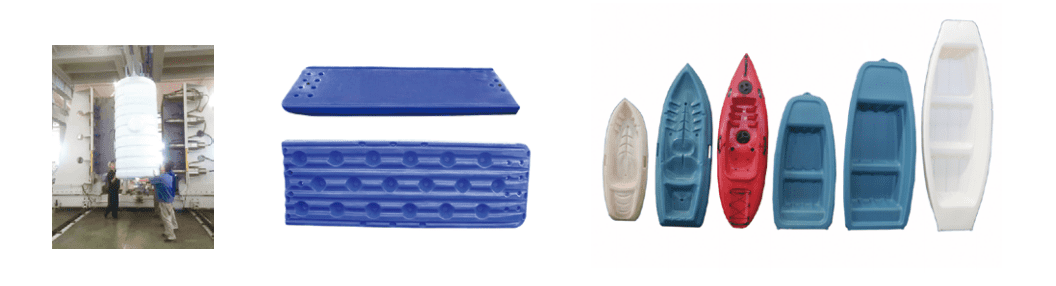

Tongjia tj-vb3000/sp-10000/sp series super large hollow blow molding machine is mainly used to produce super large plastic ships, kayaks and surfboards, super large horizontal buckets, vertical buckets, large desktop boards, plastic walls and other large hollow products, replacing the traditional roll molding process, computerized operation, and control system to ensure the uniformity of container thickness, Meet the needs of users for hollow products of different specifications.
Add to quoteTongjia TJ-VB3000/SP-10000/SP series super large blow molding machine is mainly used to produce super large plastic boats, kayaks and surfboards, super large horizontal water tanks, vertical water tanks, large desktop boards, plastic walls and such products. Replaces the traditional rotomolding process, adopts computerized operation, the control system ensures the uniformity of the thickness of the container to meet the needs of users for different products.
| Clamping system: Cylinder direct-locking two platens with no tie-bar clamping structure. |
| Die head: Single cylinder center-feeding accumulator die head |
| Extrusion system：AC Speed control+Hardened face gear reducer |
| Hydraulic system: All imported hydraulic valve + hydraulic servo control system |
| Control system：Imported PLC + Europe imported complete machine control system (GEFRAN from Italy) |
Note: the above data are for reference only. The company reserves the right to change the components and mechanical structure. The relevant contents involved in the purchase of equipment shall be subject to the contract.
| 1 Specifications | Units | TJ-VB3000SP | TJ-VB5000SP | TJ-VB10000SP |
| 1.1 Material | HDPE | HDPE | HDPE | |
| 1.2 Die quantity | Set | 1 | 1 | 1 |
| 1.3 Machine dimension | M | 12.0×8.7×8.0 | 12.0×10.0×8.6 | 12.6×14.0×10.0 |
| 1.4 Machine weight | Ton | 80 | 90 | 95 |
| 2 Die-head | ||||
| 2.1 Accumulator capacity | L | 80-200 | 100-330 | 100-330 |
| 2.2 Max. diameter of die | mm | 850 | 1000 | 1000 |
| 2.3 Die head heating power | KW | ≈84-189 | ≈92-220 | ≈92-220 |
| 2.4 Die head heating zone quantity | zone | 6 | 6 | 6 |
| 3 Clamping Unit | ||||
| 3.1 Clamping force | KN | 1800 | 4500 | 4500 |
| 3.2 Distance between platens | mm | 1200-3500 | 1250-4050 | 1100-4000 |
| 3.3 Mold platen size（W×H） | mm | 1850×2500 | 1560×3600 | 1560×4000 |
| 4 Extruder unit | ||||
| 4.1 Screw diameter | mm | 150 | 120×2 | 150×2 |
| 4.2 Screw L/D ratio | L/D | 30 | 30 | 30 |
| 4.3 HMWHDPE Plasticizing amount | Kg/h | 660 | 400×2 | 660×2 |
| 4.4 Screw heating zone quantity | zone | 6 | 6×2 | 6×2 |
| 4.5 Screw heating power | KW | 64 | 36×2 | 64×2 |
| 4.6 Extruder driving power | KW | 200 | 132×2 | 200×2 |
| 5 Power | ||||
| 5.1 Total power consumption | KW | 417-522 | 510-639 | 718-846 |
| 5.2 Hydraulic drive power | KW | 37+24+7.5 | 37+37+7.5 | 45+45+7.5 |
| 5.3 Cooling water consumption | m³/h | 25 | 30 | 35 |
| 5.4 Cooling water pressure | Mpa | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| 5.5 Air pressure | Mpa | 1 | 1 | 1 |
| 5.6 Air consumption | m³/min | 3 | 3 | 4 |
