TJ-HB30L-120L Hollow blow molding machine

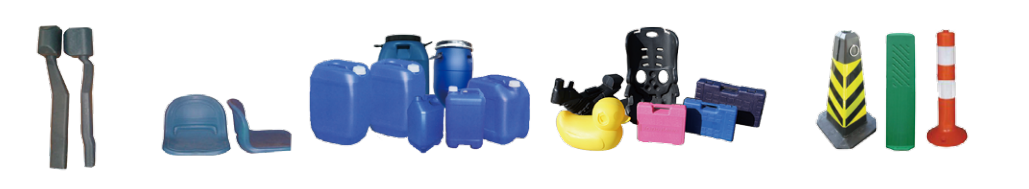

Tongjia TJ-HB30L-120L series hollow blow molding machine is used to produce various chemical barrels, civilian barrels, medical packaging, child safety seats, transportation facilities and tool bags, etc., to meet customer requirements for 30-120L hollow products of different specifications need.
Add to quote| Mold opening and closing system: Diagonal double tie rod center mold locking bidirectional synchronous high-precision linear guide rail guide mold opening and closing mechanism |
| Extrusion system: hard tooth surface reducer + imported inverter |
| Die System: Special Steel Center Feed Extrusion Die |
| Hydraulic system: all imported hydraulic valves + hydraulic servo control system |
| Control system: imported PLC+ European imported complete machine control system (Jeffren, Italy) |

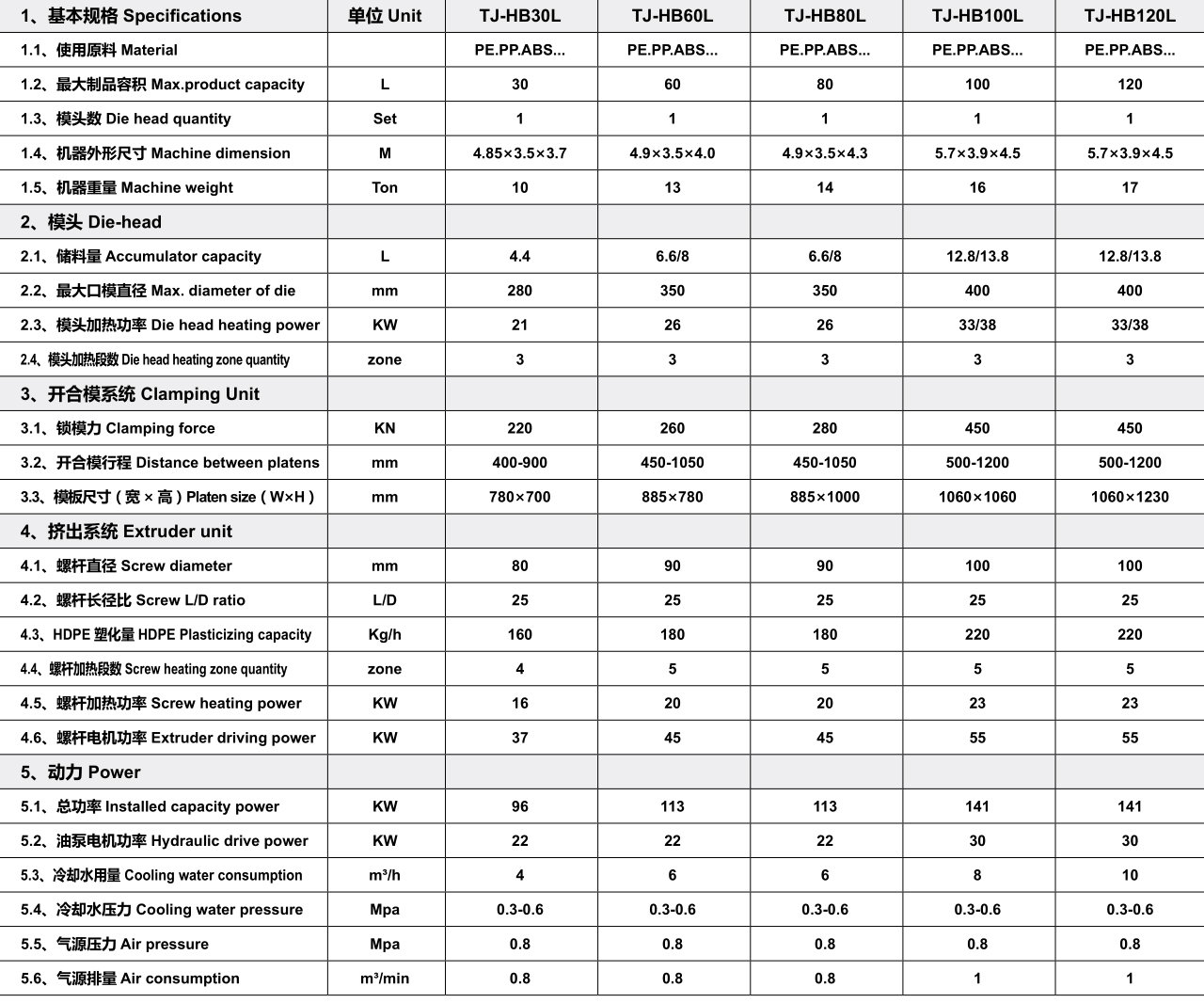

| 1 Specifications | Units | TJ-HB30L | TJ-HB60L | TJ-HB80L | TJ-HB100L | TJ-HB120L |
| 1.1 Material | PE.PP.ABS... | PE.PP.ABS... | PE.PP.ABS... | PE.PP.ABS... | PE.PP.ABS... | |
| 1.2 Max.product capacity | L | 30 | 60 | 80 | 100 | 100 |
| 1.3 Die quantity | Set | 1 | 1 | 1 | 1 | 1 |
| 1.4 Machine dimension | M | 4.85×3.5×3.7 | 4.9×3.5×4.0 | 4.9×3.5×4.3 | 5.7×3.9×4.5 | 5.7×3.9×4.5 |
| 1.5 Machine weight | Ton | 10 | 13 | 14 | 16 | 17 |
| 2 Die-head | ||||||
| 2.1 Accumulator capacity | L | 4.4 | 6.6/8.8 | 6.6/8.8 | 12.8/13.8 | 12.8/13.8 |
| 2.2 Max. diameter of die | mm | 200 | 300 | 300 | 400 | 400 |
| 2.3 Die head heating power | KW | ≈21 | ≈26 | ≈26 | ≈33/38.6 | ≈33/38.6 |
| 2.4 Die head heating zone quantity | zone | 3 | 3 | 3 | 3 | 3 |
| 3 Clamping Unit | ||||||
| 3.1 Clamping force | KN | 300 | 380 | 380 | 450 | 450 |
| 3.2 Distance between platens | mm | 400-900 | 450-1000 | 450-1000 | 500-1200 | 500-1200 |
| 3.3 Mold platen size（W×H） | mm | 780×700 | 885×780 | 885×1000 | 1060×1060 | 1060×1230 |
| 4 Extruder unit | ||||||
| 4.1 Screw diameter | mm | 80 | 90 | 90 | 100 | 100 |
| 4.2 Screw L/D ratio | L/D | 25 | 25 | 25 | 25 | 25 |
| 4.3 HDPE Plasticizing amount | Kg/h | 110 | 130-160 | 130-160 | 160-200 | 160-200 |
| 4.4 Screw heating zone quantity | zone | 5 | 5 | 5 | 5 | 5 |
| 4.5 Screw heating power | KW | 16 | 20 | 20 | 23 | 23 |
| 4.6 Extruder driving power | KW | 30 | 37/45 | 37/45 | 45/55 | 45/55 |
| 5 Power | ||||||
| 5.1 Total power consumption | KW | 91 | 120/128 | 120/128 | 138/148 | 138/148 |
| 5.2 Hydraulic drive power | KW | 24 | 37 | 37 | 37 | 37 |
| 5.3 Cooling water consumption | m³/h | 3.6 | 5 | 5 | 6 | 6 |
| 5.4 Cooling water pressure | Mpa | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| 5.5 Air pressure | Mpa | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| 5.6 Air consumption | m³/min | 0.8 | 1 | 1 | 1.2 | 1.2 |
