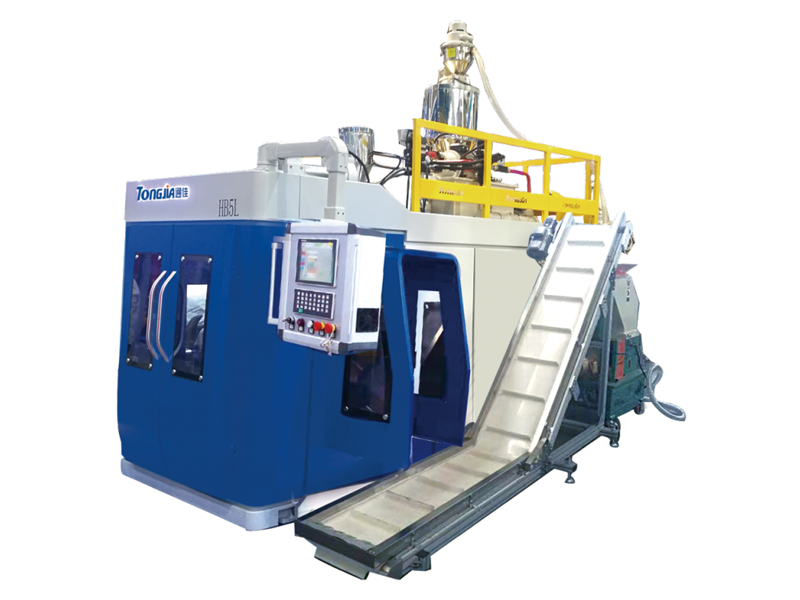

TJ-HB series Single station hollow blow molding machine
Tongjia TJ-HB series single-station blow molding machines can be configured with single, double and multi-die heads and single, double-layer and multi-layer composite die heads according to customer needs. It can manufacture blow molding machines suitable for processing various special shaped and special raw materials for users, and can be used for the production of PE, PP, ABS, EVOH, TPU and other products.
Add to quoteThis series of equipment is suitable for the production of hollow products such as plastic bottles, barrels and cans from 10 ml to 15 liters. Such as: milk bottles, oil pots, detergent bottles, laundry detergent buckets, wine pots, vinegar pots, etc.
| Mould opening and closing system: single translation + high precision linear guide |
| Extrusion system: hard tooth surface reducer + imported inverter |
| Die System: Special Steel Center Feed Extrusion Die |
| Hydraulic system: all imported hydraulic valves, seals + electro-hydraulic proportional control |
| Control system: imported PLC + imported man-machine interface (touch screen) + PLC automatic temperature control module |
| 1 Specifications | Units | TJ-HB2L | TJ-HB5L | TJ-HB15L |
| 1.1 Material | PE.PP.PVC.PA... | PE.PP.PVC.PA... | PE.PP.PVC.PA... | |
| 1.2 Max.product capacity | L | 2 | 5 | 15 |
| 1.3 Die quantity | Set | 1.2.3.4... | 1.2.3.4... | 1.2.3.4... |
| 1.4 Machine dimension | M | 2.9×2.1×2.4 | 3.7×2.1×2.8 | 3.8×2.3×3.1 |
| 1.5 Machine weight | Ton | 3.2 | 7.8 | 8.3 |
| 2 Die-head | ||||
| 2.1 Max. diameter of die | mm | 70 | 140 | 150 |
| 2.2 Center distance of double die | mm | 120 | 160 | 180 |
| 2.3 Die head heating power | KW | 5.2 | 9.4 | 11.3 |
| 2.4 Die head heating zone quantity | zone | 3 | 3 | 3 |
| 3 Clamping Unit | ||||
| 3.1 Clamping force | KN | 90 | 90 | 110 |
| 3.2 Distance between platens | mm | 135-485 | 230-620 | 230-620 |
| 3.3 Toggle stroke | mm | 400 | 500 | 500 |
| 3.4 Mold platen size（W×H） | mm | 320×380 | 320×380 | 380×425 |
| 4 Extruder unit | ||||
| 4.1 Screw diameter | mm | 55 | 65 | 75 |
| 4.2 Screw L/D ratio | L/D | 25 | 25 | 25 |
| 4.3 HDPE Plasticizing amount | Kg/h | 60 | 70 | 90 |
| 4.4 Screw heating zone quantity | zone | 3 | 3 | 3 |
| 4.5 Screw heating power | KW | 10.8 | 13.8 | 14.2 |
| 4.6 Extruder driving power | KW | 11 | 15 | 22 |
| 5 Power | ||||
| 5.1 Total power consumption | KW | 42 | 49.2 | 58 |
| 5.2 Hydraulic drive power | KW | 11 | 11 | 11 |
| 5.3 Cooling water consumption | m³/h | 2 | 3 | 4 |
| 5.4 Cooling water pressure | Mpa | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| 5.5 Air pressure | Mpa | 0.8 | 0.8 | 0.8 |
| 5.6 Air consumption | m³/min | 0.4 | 0.8 | 1 |
