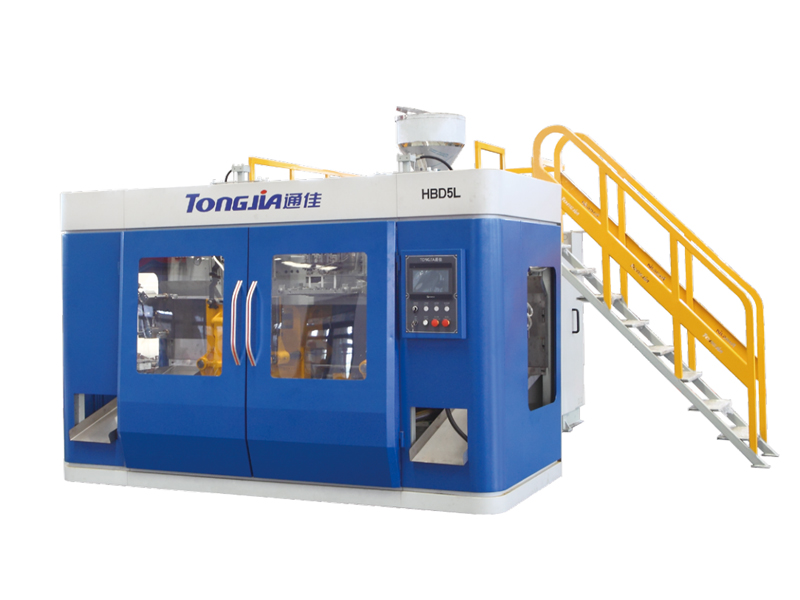

TJ-HBD series double station hollow blow molding machine
Tongjia TJ-HBD series double-station blow molding machines can be configured with single, double-die, three-, four-, and six-die heads according to customer output requirements. The equipment can be equipped with transparent line single die head, transparent line double die head, transparent line double-layer single-die head, double-layer double-die head, multi-layer single-die head, multi-layer multi-die head, etc. according to customer product requirements.
This series of blow molding machines are mainly used to produce various thermoplastic hollow containers such as PE, PP, etc. The products produced by this series of equipment have uniform wall thickness, good quality and high efficiency, and are ideal equipment for various industrial and civil packaging industries.
| Mould opening and closing system: double translation + high precision linear guide |
| Extrusion system: hard tooth surface reducer + imported inverter |
| Die System: Special Steel Center Feed Extrusion Die |
| Hydraulic system: all imported hydraulic valves, seals + electro-hydraulic proportional control |
| Control system: imported PLC + imported man-machine interface (touch screen) + PLC automatic temperature control module |
| Specifications | Units | TJ-HBD2L | TJ-HBD5L | TJ-HBD15L |
| 1.1 Material | PE.PP.PVC.PA... | PE.PP.PVC.PA... | PE.PP.PVC.PA... | |
| 1.2 Max.product capacity | L | 2 | 5 | 15 |
| 1.3 Die quantity | Set | 1.2.3.4... | 1.2.3.4... | 1.2.3.4... |
| 1.4 Machine dimension | M | 4.0×3.0×2.8 | 4.0×3.0×2.8 | 5.5×3.7×3.8 |
| 1.5 Machine weight | Ton | 5.5 | 7.8 | 8.3 |
| 2 Die-head | ||||
| 2.1 Max. diameter of die | mm | 160 | 180 | 260 |
| 2.2 Center distance of double die | mm | 60 | 160 | 250 |
| 2.3 Die head heating power | KW | 5.2 | 9.4 | 11.3 |
| 2.4 Die head heating zone quantity | zone | 3 | 3 | 3 |
| 3 Clamping Unit | ||||
| 3.1 Clamping force | KN | 90 | 90 | 110 |
| 3.2 Distance between platens | mm | 135-485 | 230-620 | 230-820 |
| 3.3 Toggle stroke | mm | 450 | 650 | 700 |
| 3.4 Mold platen size（W×H） | mm | 320×400 | 320×400 | 510×550 |
| 4 Extruder unit | ||||
| 4.1 Screw diameter | mm | 65 | 75 | 90 |
| 4.2 Screw L/D ratio | L/D | 25 | 25 | 25 |
| 4.3 HDPE Plasticizing amount | Kg/h | 70 | 90 | 130 |
| 4.4 Screw heating zone quantity | zone | 4 | 3 | 5 |
| 4.5 Screw heating power | KW | 10.2 | 13.5 | 20 |
| 4.6 Extruder driving power | KW | 15 | 22 | 37 |
| 5 Power | ||||
| 5.1 Total power consumption | KW | 41.4 | 55.9 | 92.3 |
| 5.2 Hydraulic drive power | KW | 11 | 11 | 24 |
| 5.3 Cooling water consumption | m³/h | 3 | 4 | 6 |
| 5.4 Cooling water pressure | Mpa | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| 5.5 Air pressure | Mpa | 0.8 | 0.8 | 0.8 |
| 5.6 Air consumption | m³/min | 0.4 | 0.8 | 1 |
