TJ-VB series single station European version high speed hollow blow molding machine
TJ-VB series single-station European version hollow blow molding machine can be configured with single, double and multi-die heads and single, double-layer and multi-layer composite die heads according to the output and product needs.

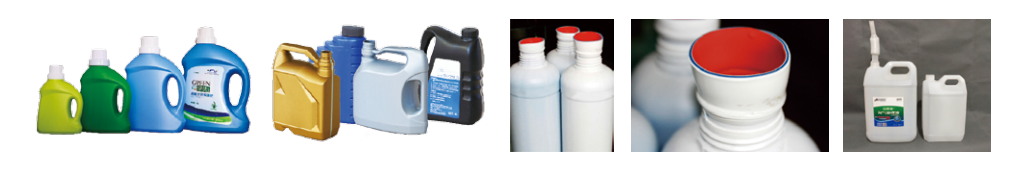

This series of blow molding machines adopts a shaft-type crank arm mold opening and closing structure, which is more stable in mold opening and closing, and has a higher clamping force. , to meet the user’s requirements for different specifications of 0.1-30L hollow products.
| Mould opening and closing system: single translation + high precision linear guide + double linear guide |
| Extrusion system: hard tooth surface reducer + imported inverter |
| Die System: Special Steel Center Feed Extrusion Die |
| Hydraulic system: all imported hydraulic valves, seals + electro-hydraulic proportional control |
| Control system: imported PLC+ European imported complete machine control system (Jeffren, Italy) |
| 1 Specifications | Units | TJ-VB7L | TJ-VB15L | TJ-VB30L |
| 1.1 Material | PE.PP.PVC.PA... | PE.PP.PVC.PA... | PE.PP.PVC.PA... | |
| 1.2 Max.product capacity | L | 7 | 15 | 30 |
| 1.3 Die quantity | Set | 1.2.3.4.6... | 1.2.3.4.6... | 1.2.3.4.6... |
| 1.4 Machine dimension | M | 4.9×3.5×2.9 | 6.0×3.8×3.5 | 6.0×5.5×3.5 |
| 1.5 Machine weight | Ton | 6.5 | 12 | 16 |
| 2 Die-head | ||||
| 2.1 Max. diameter of die | mm | 150 | 200 | 260 |
| 2.2 Center distance of double die | mm | 180 | 260 | 300 |
| 2.3 Center distance of tri die | mm | 120 | 160 | 220 |
| 2.4 Center distance of tetra die | mm | 90 | 120 | 160 |
| 2.5 Die head heating zone quantity | zone | 3 | 3 | 4 |
| 3 Clamping Unit | ||||
| 3.1 Clamping force | KN | 130 | 170 | 300 |
| 3.2 Distance between platens | mm | 230-620 | 320-680 | 450-920 |
| 3.3 Toggle stroke | mm | 500 | 600 | 800 |
| 3.4 Mold platen size（W×H） | mm | 390×460 | 520×520 | 700×740 |
| 4 Extruder unit | ||||
| 4.1 Screw diameter | mm | 65 | 75 | 90 |
| 4.2 Screw L/D ratio | L/D | 25 | 25 | 25 |
| 4.3 HDPE Plasticizing amount | Kg/h | 70 | 90 | 130-160 |
| 4.4 Screw heating zone quantity | zone | 3 | 3 | 5 |
| 4.5 Screw heating power | KW | 8.5 | 13.5 | 20 |
| 4.6 Extruder driving power | KW | 15 | 22 | 37/45 |
| 5 Power | ||||
| 5.1 Total power consumption | KW | 34.5 | 71 | 94/102 |
| 5.2 Hydraulic drive power | KW | 11 | 24 | 37 |
| 5.3 Cooling water consumption | m³/h | 2 | 4 | 6 |
| 5.4 Cooling water pressure | Mpa | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| 5.5 Air pressure | Mpa | 0.8 | 0.8 | 0.8 |
| 5.6 Air consumption | m³/min | 1.2 | 1.8 | 2.4 |
