Injection Molding Machine For Plastic Auto Parts
The special injection molding machine for plastic auto parts is developed for the more popular injection molding products on the market, and is designed for the mechanical structure of the products. This series of models adopts the brand and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple.
Add to quoteIt is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people's livelihood and other fields. TH super series dedicated servo energy-saving injection molding machine is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
| ITEMS | Units | TH2880/SP | ||||
| INJECTION UNIT | Screw Diameter | mm | 190 | 200 | 210 | 220 |
| Screw L/D Ratio | L/D | 23.2 | 22.0 | 21 | 20 | |
| Shot Size(Theoretical) | cm3 | 35129.2 | 38924.3 | 42914 | 47098.4 | |
| Injection Weight | g | 31967.6 | 35421.1 | 39051.8 | 42859.5 | |
| Injection Pressure | Mpa | 189.6 | 171.1 | 155.2 | 141.4 | |
| CLAMPING UNIT | Clamping Force | KN | 28800 | |||
| Clamping Stroke | mm | 2050 | ||||
| Space Between Tie Bar | mm | 2000×1750 | ||||
| Max. Mold Height | mm | 1900 | ||||
| Min. Mold Height | mm | 1000 | ||||
| Eject Stroke | mm | 470 | ||||
| Eject Force | KN | 555 | ||||
| OTHERS | Max. Pump Pressure | MPa | 16 | |||
| Pump Motor Power | KW | 197/261.6 | ||||
| Heat power | KW | 148.8 | ||||
| Hopper Capacity | Kg | 400 | ||||
| Dimensions | M | 21.2×5.1×4.2 | ||||
| Machine Weight | T | 221 | ||||
| Oil Tank Capacity | L | 3500 | ||||

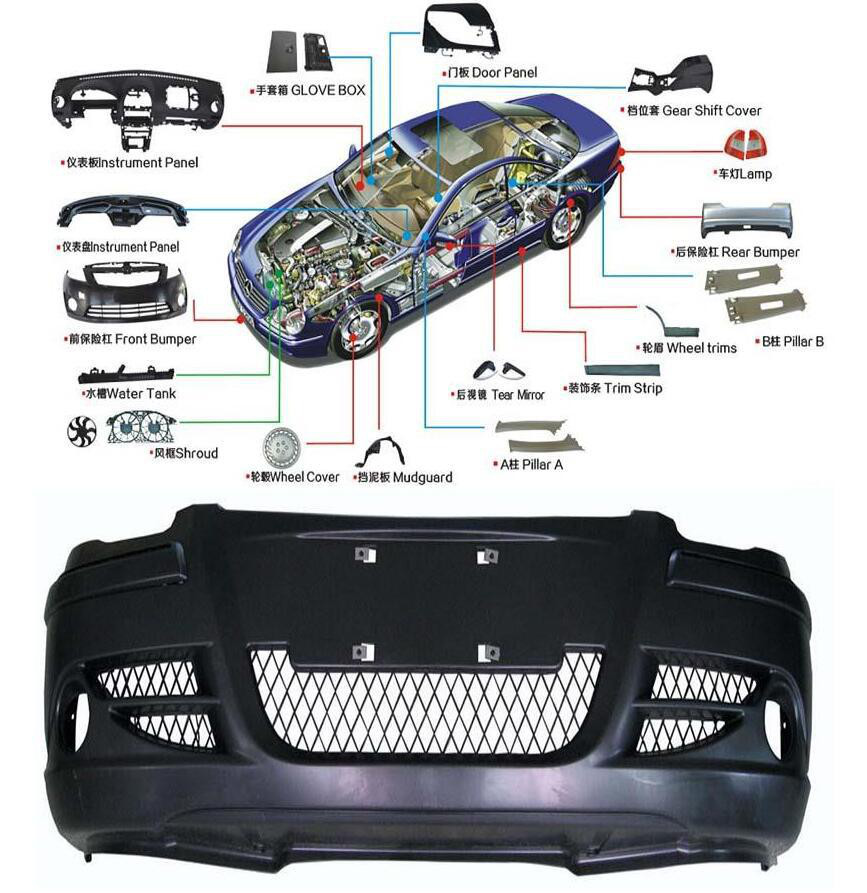

Auto parts such as car bumpers, car door panels, instrument center consoles, etc. are auto accessories that are one-time injection molded by injection molding machines. Injection molded auto parts have been widely used by auto manufacturers and supporting manufacturers. Different kinds of raw material particles can be used according to the use and quality requirements of the product, and modified fiber materials can be appropriately added to increase the flexibility and surface gloss of auto parts. Our company's fast and precise servo energy-saving injection molding machine TH1880 has provided several injection molding machine models suitable for this series of automobile bumpers and other auto parts for well-known domestic automobile manufacturers, and has been recognized by automobile manufacturers and tested by consumers and the market. With the rapid development of the plastics industry and the continuous introduction of various new technologies and new plastic materials, the production and processing of plastic packaging, auto parts, various home appliance shells and even new environmentally friendly household items have entered a new era. Welcome friends from all walks of life to visit our Tongjia Heavy Industry Co., Ltd. to inspect the auto parts injection molding machine equipment, and wholeheartedly provide you with the whole plant equipment plan!
