The special injection molding machine for plastic pallets is developed for the more popular injection molding products on the market, and is designed for the mechanical structure of the products. This series of models adopts the brand and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple.
Add to quoteIt is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people's livelihood and other fields. TH super series dedicated servo energy-saving injection molding machine is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
ITEMS | Units | TH2880/SP | ||||
INJECTION UNIT | Screw Diameter | mm | 190 | 200 | 210 | 220 |
Screw L/D Ratio | L/D | 23.2 | 22.0 | 21 | 20 | |
Shot Size(Theoretical) | cm3 | 35129.2 | 38924.3 | 42914 | 47098.4 | |
Injection Weight | g | 31967.6 | 35421.1 | 39051.8 | 42859.5 | |
Injection Pressure | Mpa | 189.6 | 171.1 | 155.2 | 141.4 | |
CLAMPING UNIT | Clamping Force | KN | 28800 | |||
Clamping Stroke | mm | 2050 | ||||
Space Between Tie Bar | mm | 2000×1750 | ||||
Max. Mold Height | mm | 1900 | ||||
Min. Mold Height | mm | 1000 | ||||
Eject Stroke | mm | 470 | ||||
Eject Force | KN | 555 | ||||
OTHERS | Max. Pump Pressure | MPa | 16 | |||
Pump Motor Power | KW | 197/261.6 | ||||
Heat power | KW | 148.8 | ||||
Hopper Capacity | Kg | 400 | ||||
Dimensions | M | 21.2×5.1×4.2 | ||||
Machine Weight | T | 221 | ||||
Oil Tank Capacity | L | 3500 |

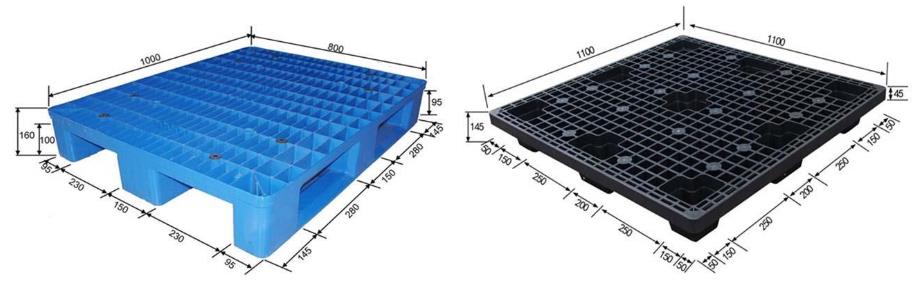

Our company's plastic pallet injection molding machine production equipment is energy-saving, environmentally friendly, low-loss, and has an exclusive design and practical production process for the plastic pallet mechanical structure that is conducive to product injection molding. It is a good choice for you to invest in the plastic packaging and transportation industry. Market prospects and product advantages: plastic pallets are resistant to acid, alkali and corrosion, and are widely used in today's society where logistics and industrial transportation are developed. The plastic pallets produced by our company's injection molding machine are non-toxic and tasteless, which is beneficial to the improvement of the warehouse environment, especially for the warehouse food environment. The plastic pallets produced by our company's injection molding machine have a neat appearance, which fully demonstrates the performance of the injection molding machine. The plastic pallets are easy to clean and sterilize, without nails and thorns, and the goods will not be damaged by external forces during the packaging process. Because plastic pallets are free from fumigation, importers and exporters favor plastic pallets produced by injection molding machines, which reduces the procedures for exporting goods and speeds up capital turnover. Plastic pallets do not support combustion, have no static sparks, and have a certain effect on warehouse fire prevention. Damaged plastic pallets can be recycled and can be used as raw materials for other items after processing. Plastic pallets have a long service life, generally 2-3 times that of revolving wooden pallets. can reach 4-5 times. The following are two objective evaluations of our company's plastic pallet injection molding machine buyers and customers who use plastic pallets1. Plastic pallets are environmentally friendly and economical: plastic pallets can be recycled, saving resources, replacing wood with plastics, in line with national environmental protection requirements, cost-effective and economical.2. Ultra-light integration of plastic pallet structure: According to the professional design of plastic pallet molds, forklift plastic industry has realized ultra-light and integrated structure, reasonable load-bearing force, smooth and smooth appearance, beautiful appearance, strong practicability, convenient for industrial transportation of various enterprises warehousing, transshipment and on-site management. Welcome friends from all walks of life to visit our Tongjia Heavy Industry Co., Ltd. to inspect the plastic tray injection molding machine equipment, and wholeheartedly provide you with the whole plant equipment plan!
