Plastic Crate Special Injection Molding Machine
The special injection molding machine for plastic baskets is developed for the more popular injection molding products in the market, and has a unique mechanical structure design for the products. This series of models adopts the brand and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple.
Add to quoteIt is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people's livelihood and other fields. TH super series dedicated servo energy-saving injection molding machine is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
ITEMS | Units | TH520/SP | ||||
INJECTION UNIT | Screw Diameter | mm | 80 | 85 | 90 | |
| Screw L/D Ratio | L/D | 22.3 | 21 | 19.8 | ||
| Shot Size(Theoretical) | cm3 | 2030.7 | 2292.5 | 2570.1 | ||
| Injection Weight | g | 1848 | 2086.2 | 2338.8 | ||
| Injection Pressure | Mpa | 190.3 | 168.6 | 150.4 | ||
CLAMPING UNIT | Clamping Force | KN | 5200 | |||
| Clamping Stroke | mm | 840 | ||||
| Space Between Tie Bar | mm | 820×820 | ||||
| Max. Mold Height | mm | 800 | ||||
| Min. Mold Height | mm | 320 | ||||
| Eject Stroke | mm | 200 | ||||
| Eject Force | KN | 125 | ||||
OTHERS | Max. Pump Pressure | MPa | 17.5 | |||
| Pump Motor Power | KW | 62/65 | ||||
| Heat power | KW | 38.8 | ||||
| Hopper Capacity | Kg | 50 | ||||
| Oil Tank Capacity | L | 800 | ||||
| Dimensions | M | 9.0×1.96×2.54 | ||||
| Machine Weight | T | 20 | ||||

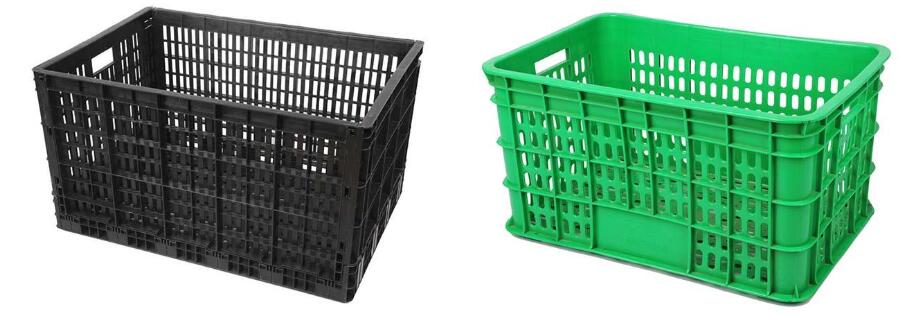

Our company's turnover basket injection molding machine production equipment TH520/sp servo energy-saving injection molding machine, energy saving and environmental protection, low loss. For plastic basket products, the clamping mechanism has a large depth and five fulcrum force-increasing design for product injection molding, which is very suitable for the production of turnover baskets. The whole machine adopts well-known displacement sensor, solenoid valve, hydraulic and other core system accessories, which is superior to the configuration in the same industry. The servo motor adapts to the production cycle of the product. The cooling and pressure holding stage can save you 30% to 70% of the power consumption, and the production cycle is two to three per minute. Market prospects: Plastic turnover baskets are widely used in a wide range of industries. The products are made of new polyethylene PE materials or recycled materials by one-time injection molding, which are durable, flexible, and resistant to temperature and acid and alkali corrosion. In recent years, the industrialization of new material plastic turnover baskets and disposable plastic turnover baskets has benefited from the vigorous development of modern logistics. Features. Our company's plastic turnover basket injection molding machine equipment plays a key role in saving packaging costs and improving transportation efficiency for the logistics of vegetable production bases, fruit industry areas, seafood transportation and other industries, and has been well received by customers and customer manufacturers.
