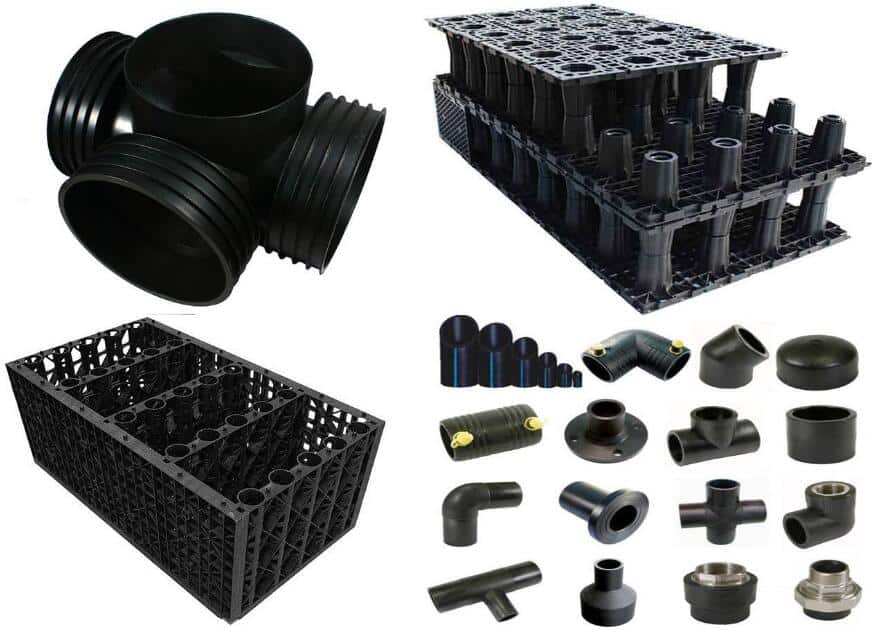

The special injection molding machine for water supply and drainage engineering parts is developed for the more popular injection molding products in the market, and has a unique mechanical structure design for the products. This series of models adopts the brand and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple.
Add to quoteIt is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people's livelihood and other fields. The TH surpassing series dedicated fast and precise servo energy-saving injection molding machine is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
ITEMS | Units | TH2280/SP1 | ||||
INJECTION UNIT | Screw Diameter | mm | 150 | 160 | 170 | 185 |
Screw L/D Ratio | L/D | 24.3 | 22.8 | 21.4 | 19.7 | |
Shot Size(Theoretical) | cm3 | 13942.8 | 15863.8 | 17908.7 | 21208.5 | |
Injection Weight | g | 12687.9 | 14436 | 16296.9 | 19299.7 | |
Injection Pressure | Mpa | 173.4 | 152.4 | 135 | 114 | |
CLAMPING UNIT | Clamping Force | KN | 22800 | |||
Clamping Stroke | mm | 1900 | ||||
Space Between Tie Bar | mm | 1800×1620 | ||||
Max. Mold Height | mm | 1600 | ||||
Min. Mold Height | mm | 700 | ||||
Eject Stroke | mm | 400 | ||||
Eject Force | KN | 505 | ||||
OTHERS | Max. Pump Pressure | MPa | 16 | |||
Pump Motor Power | KW | 161.2/218 | ||||
Heat power | KW | 129.4 | ||||
Hopper Capacity | Kg | 400 | ||||
Dimensions | M | 17.1×4.6×4.0 | ||||
Machine Weight | T | 138 | ||||
Oil Tank Capacity | L | 3200 |
Our company's rainwater collection module equipment and products produced by servo energy-saving injection molding machines have reached the specified manufacturing process standards. We have selected an effective and energy-saving rainwater collection module injection molding machine equipment----Tongjia Beyond Series TH2280/sp, and has cooperated with domestic and foreign customers. Successfully developed and launched to the market. The rainwater collection module is a one-time injection molding of molten PP plastic by injection molding machine equipment, and buried in the ground through a professional construction team to collect rainwater. Market prospect: Due to the rapid development of urbanization, the impervious areas of roads and buildings are expanding. On the one hand, rainwater cannot penetrate into the ground to replenish groundwater, and water resources are over-exploited, which makes the water environment and ecological environment around the city worse; The collection and utilization of water environment and rainwater resources have become increasingly prominent, and rainwater collection modules have emerged as the times require, which are emerging energy-saving and environmentally friendly injection molding products advocated by the state. Our company's rainwater collection module injection molding machine injection molding products have high molding rate, large output, time saving and power saving, and the machine is easy to operate. The rainwater collection module that participated in the design has flexible design, long service life, convenient construction, short construction period, fast transportation, strong bearing capacity, environmental protection and low cost. It is installed and used in the pilot sponge cities of Nanjing, Shanghai and Shenzhen, with huge market prospects and potential for development. Our company's injection molding machine has achieved win-win cooperation with customer companies, and meets the needs of the market environment. Rainwater harvesting module manufacturers are very profitable. Welcome friends from all walks of life to visit our Tongjia Heavy Industry for inspection and guidance.
