TH110/SP Injection Molding Machine
TH110/SP injection molding machine adopts brand name and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
Add to quoteITEMS | Units | TH110/SP | |||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 35 | 38 | 42 |
| Screw L/D Ratio | L/D | 21.7 | 20.0 | 18.1 | |
| Theoretical injection Volume | cm3 | 168.4 | 198.5 | 242.5 | |
| Injection Weight(PS) | g | 153.2 | 180.6 | 220.6 | |
| Injection Pressure | Mpa | 240 | 203.6 | 166.7 | |
CLAMPING UNIT | Clamping Force | KN | 1100 | ||
| Clamping Stroke | mm | 360 | |||
| Space Between Tie Bar | mm | 360×360 | |||
| Max. Mold Height | mm | 380 | |||
| Min. Mold Height | mm | 150 | |||
| Eject Stroke | mm | 120 | |||
| Eject Force | KN | 35 | |||
OTHERS | Max. Pump Pressure | MPa | 17.5 | ||
| Approx. Motor Power | KW | 10.5/14.7 | |||
| Approx. Heat power | KW | 7 | |||
| Hopper Capacity | Kg | 25 | |||
| Oil Tank Capacity | L | 200 | |||
| Dimensions | M | 4.2×1.3×1.8 | |||
| Approx. Machine Weight | T | 3.3 | |||

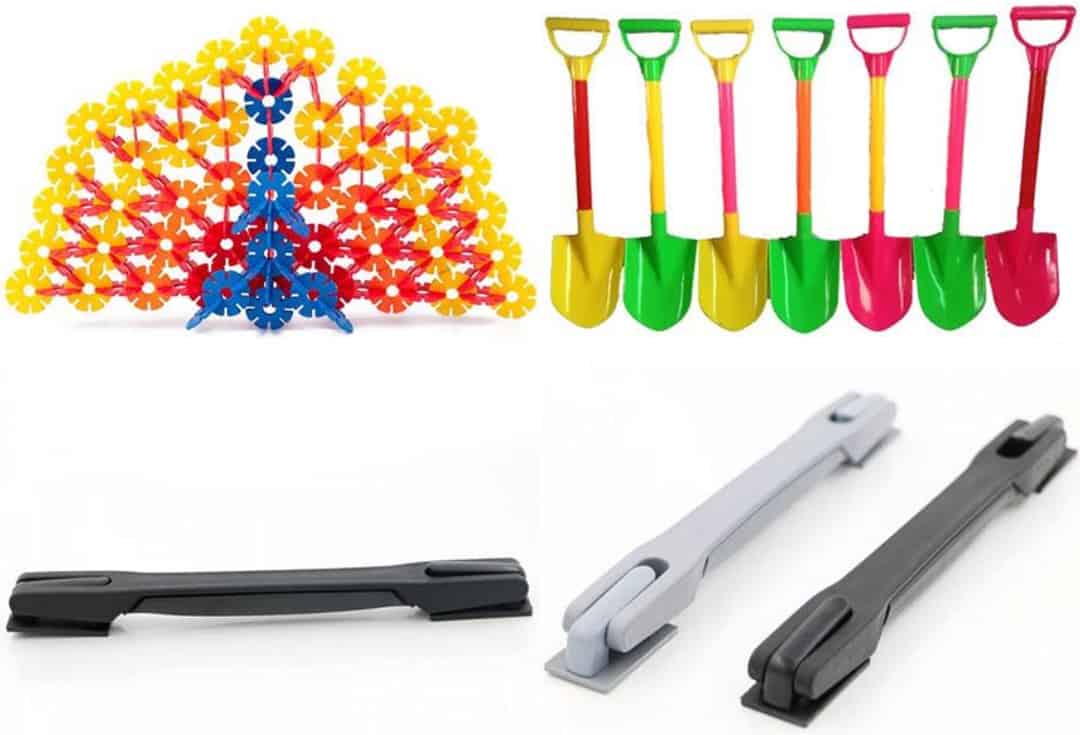

TH110/SP clothing energy-saving injection molding machine mainly produces threading boxes, smart caps, electronic accessories, electrical buttons, beverage bottle caps, medical plastic parts, and other small parts products. Further enhance the competitiveness of customer products. Our company's core plasticizing components and clamping accessories are all well-known brands at home and abroad, such as Taiwan Hongxun computer control, Italian Geflon displacement sensor, Yuken solenoid valve, etc. At present, our company's model has been adopted by manufacturers in all walks of life, such as small battery accessories, disposable medical products, mineral water smart covers, plastic toy accessories, eight-treasure porridge packaging covers and a series of products, in order to exceed the same industry. The core configuration and superior performance, super cost-effective and perfect after-sales management system have won fierce market competition for themselves and customers.
