TH168/SP Injection Molding Machine
TH168/SP injection molding machine adopts brand and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
Add to quoteITEMS | Units | TH168/SP | |||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 42 | 48 | 52 |
| Screw L/D Ratio | L/D | 21.4 | 20 | 18 | |
| Theoretical injection Volume | cm3 | 286.8 | 374.6 | 439.6 | |
| Injection Weight (PS) | g | 261 | 340.9 | 400 | |
| Injection Pressure | Mpa | 212.8 | 162.9 | 138.8 | |
CLAMPING UNIT | Clamping Force | KN | 1680 | ||
| Clamping Stroke | mm | 480 | |||
| Space Between Tie Bar | mm | 470×470 | |||
| Max. Mold Height | mm | 530 | |||
| Min. Mold Height | mm | 200 | |||
| Eject Stroke | mm | 150 | |||
| Eject Force | KN | 42 | |||
OTHERS | Max. Pump Pressure | MPa | 17.5 | ||
| Approx. Motor Power | KW | 16.4/18.7 | |||
| Approx. Heat power | KW | 11.8 | |||
| Hopper Capacity | L | 25 | |||
| Oil Tank Capacity | L | 230 | |||
| Dimensions | M | 5.1×1.4×2.1 | |||
| Approx. Machine Weight | T | 5.4 | |||

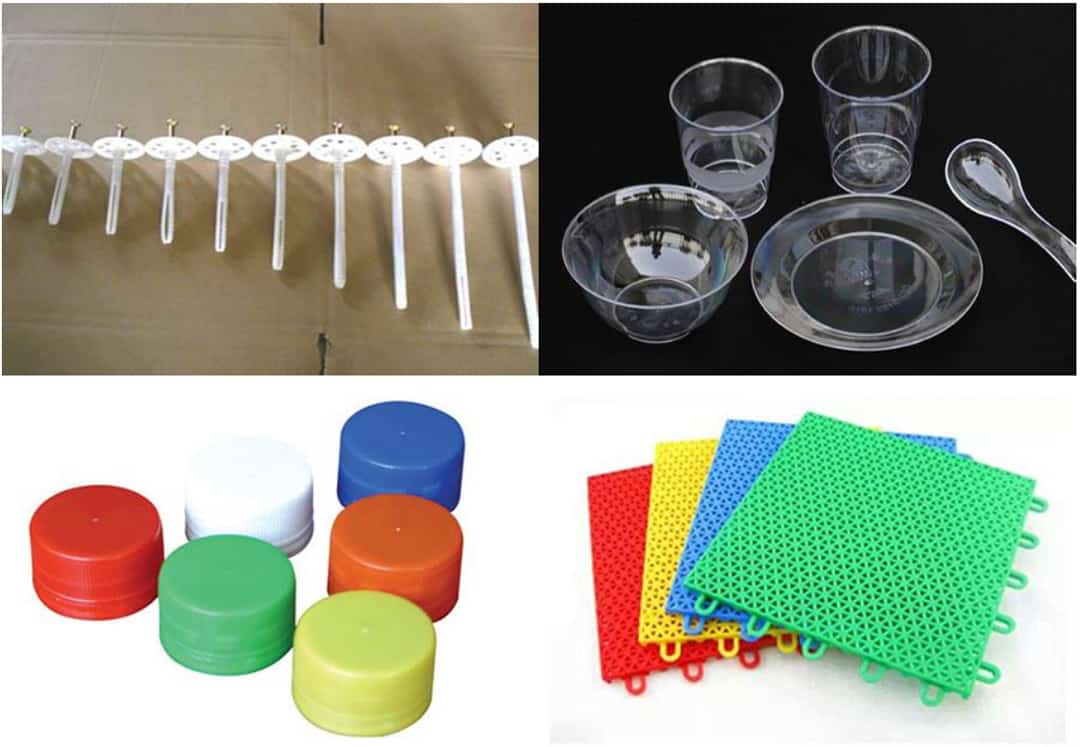

TH168/SP servo energy-saving injection molding machine can produce crystal tableware, plastic knife, fork and spoon, electronic and electrical accessories, medical accessories and other plastic products. Taking plastic crystal tableware as an example, the current disposable crystal tableware is just in its infancy, and a small number of people have joined this project, which will be popular in the country in the future, and have already made huge profits. The disposable crystal tableware is made of food-grade PS material. As raw material (ie baby bottle material), it is injection molded at a high temperature of 260 degrees in a sterile and dust-free manufacturing workshop. The whole production process is clean and hygienic, and it can be used once. To manufacture tableware, it is truly disposable, safe and hygienic, and it is an indispensable environmentally friendly plastic tableware in the disposable tableware market now and in the future. Our company's crystal tableware injection molding machine equipment has been upgraded to the latest beyond series. It adopts advanced hydraulic and electrical systems from internationally renowned brands. Its product performance is stable, the operation of various projects is simple, and it is energy-saving. It has been favored by crystal tableware manufacturing units across the country. Most of the crystal tableware suppliers are our company's new and old customers, who have a good reputation for the use of our crystal tableware injection molding machine equipment and the confidence to stand the test of the market.
