TH1800/TP Injection Molding Machine
TH1800/TP injection molding machine adopts high quality, strong stability, scientific and reasonable mechanical system and hydraulic system; energy saving, closed-loop servo gear pump power system; super large capacity modulus and mold opening stroke; convenient and fast automatic film adjustment function; standard deviation Dynamic injection function, effectively improve injection stability and injection rate: small footprint, saving plant space; multi-level control of injection pressure process and clamping force can be realized, and low-pressure rapid injection can be realized. With the increase of injection pressure, Correspondingly increase the clamping force, so that the formed product has less stress and good quality; the clamping force is controllable, the repeatability is good, and it is evenly applied to the mold, which improves the accuracy of the product, protects the mold, and prolongs the service life of the mold and the machine.
Add to quoteControl part: The electrical control system adopts the special control system of imported injection molding machine, and the main original parts are accessories from well-known foreign companies, such as TE from France and Gefran from Italy.Injection part: Servo drive system technology with good performance; plasticizing drive system; temperature control; heating ring synchronous heating control; injection table structure design.Clamping part: fast and accurate synchronous locking device to ensure product quality to a certain extent; ultra-short stroke clamping cylinder, extremely fast establishment of clamping force; sliding rail design for moving template to create template support; compact clamping design ,save space.
| ITEMS | Units | TH1800/TP | ||||
| A | B | C | D | |||
| INJECTION UNIT | Screw Diameter | mm | 130 | 140 | 150 | 160 |
| Screw L/D Ratio | L/D | 23.7 | 22 | 20.5 | 19.3 | |
| Theoretical injection Volume | cm3 | 9150 | 10600 | 12179 | 13855 | |
| Injection Weight (PS) | g | 8327 | 9646 | 11083 | 12608 | |
| Injection Pressure | MPa | 975 | 1129 | 1293 | 1475 | |
| Injection stroke | mm | 194.8 | 168 | 146.3 | 128.6 | |
| Screw speed (no-load) | rpm | 689 | ||||
| Clamping Force | KN | 112 | ||||
| CLAMPING UNIT | Clamping Stroke | mm | 1800KN | |||
| Space Between Tie Bar | mm | 2700 | ||||
| Max. Mold Height | mm | 1680×1560 | ||||
| Min. Mold Height | mm | 1650 | ||||
| Eject Stroke | mm | 750 | ||||
| Eject Force | KN | 400/460 | ||||
| OTHERS | Max. Pump Pressure | MPa | 17.5 | |||
| Approx. Motor Power | KW | 152.6/163.6 | ||||
| Approx. Heat power | KW | 93 | ||||
| Hopper Capacity | L | 200 | ||||
| Oil Tank Capacity | L | 4200 | ||||
| Dimensions | m | 12000x3850x4900 | ||||
| Approx. Machine Weight | T | 99 | ||||

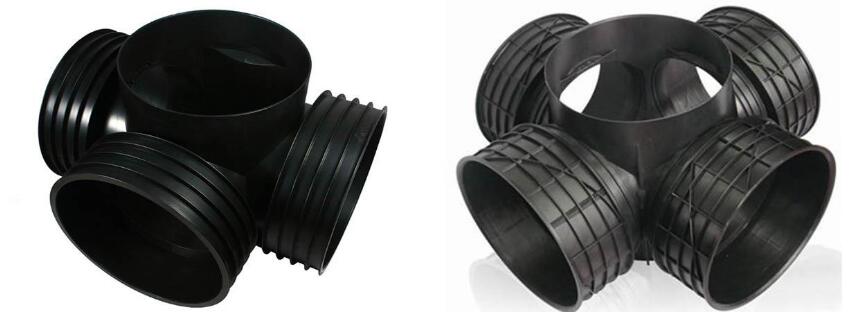

The super-large servo-driven two-platen direct-lock injection molding machine is designed in accordance with European standards. It is a research and development design of Tongjia Heavy Industry for products with complex shapes that are easy to form deep cavities and large burdens in the market. It is recommended to applicable customers. It has an excellent reputation Dedicated model. Our company's TH1800/TP injection molding machine is a servo-driven two-plate direct-locking injection molding machine type, with strong mold clamping accuracy, large mold opening force, good linear support and guidance of the injection mechanism, low injection resistance, easy to form deep cavity products, and precise control. The material tube group can be removed independently. This series of models is suitable for producing medium and large plastic products with deep cavity and complex shape and structure in many industries, such as plastic beach chairs, automobile central control instrument panels, auto parts, large plastic inspection wells, large plastic pipe fittings, and electric vehicle shells.
