TH220/SP Injection Molding Machine
TH220/SP injection molding machine adopts brand name and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
Add to quoteITEMS | Units | TH220/SP | |||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 48 | 52 | 60 |
| Screw L/D Ratio | L/D | 22.2 | 20.0 | 18.2 | |
| Theoretical injection Volume | cm3 | 407.2 | 477.8 | 636.2 | |
| Injection Weight (PS) | g | 370.5 | 434.8 | 578.9 | |
| Injection Pressure | Mpa | 209.1 | 178.2 | 133.8 | |
CLAMPING UNIT | Clamping Force | KN | 2200 | ||
| Clamping Stroke | mm | 540 | |||
| Space Between Tie Bar | mm | 530×530 | |||
| Max. Mold Height | mm | 560 | |||
| Min. Mold Height | mm | 220 | |||
| Eject Stroke | mm | 150 | |||
| Eject Force | KN | 68 | |||
OTHERS | Max. Pump Pressure | MPa | 17.5 | ||
| Approx. Motor Power | KW | 20.5/25.8 | |||
| Approx. Heat power | KW | 14 | |||
| Hopper Capacity | L | 50 | |||
| Dimensions | M | 5.6×1.5×2.2 | |||
| Oil Tank Capacity | L | 350 | |||
| Approx. Machine Weight | T | 6.8 | |||

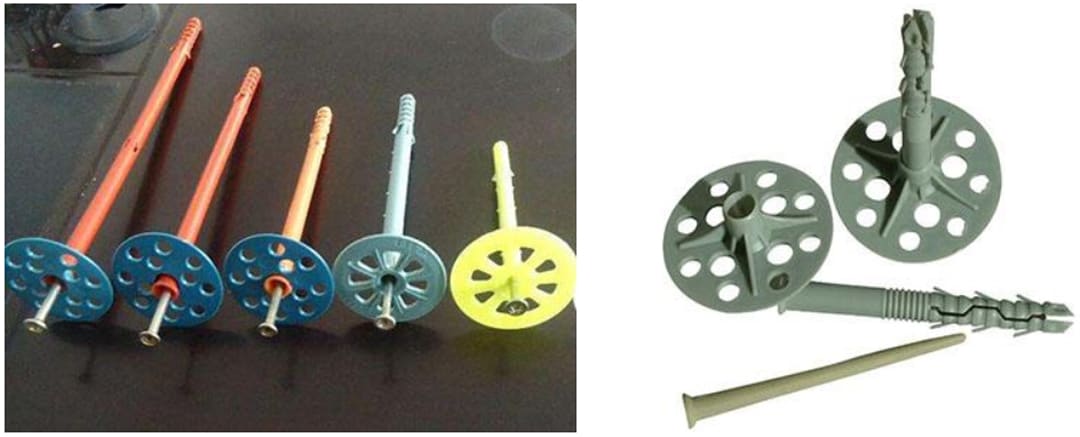

Project application: Thermal insulation nails are special anchors for external wall thermal insulation, which are widely used in building decoration and anchoring of wall thermal insulation houses. It consists of galvanized screws, nylon expansion tubes and fixed discs. According to the thickness of the insulation layer, it is divided into various specifications. It has the characteristics of anti-aging, anti-temperature sudden change, anti-corrosion, cold and heat resistance; strong bearing capacity, strong pressure bearing, good tensile performance; not easy to deform after loading, moisture-proof, slow-vibration, and good thermal insulation. Our company's thermal insulation nail injection molding machine, TH220/SP servo energy-saving injection molding machine, has been unanimously recognized by domestic thermal insulation nail manufacturers and thermal insulation nail distributors for its configuration, stable product performance and perfect after-sales service system that are superior to the same industry. This model is equipped with a servo energy-saving control system. During the injection molding process of the heat preservation nail, the servo energy-saving system makes corresponding frequency output for different pressure flows, and performs precise closed-loop control of the pressure flow, which meets the energy demand of the servo motor for the injection molding machine. Compared with traditional injection molding machines, it can save 30% to 70% of electricity consumption, and further enhance the competitiveness of products.
