TH3380/SP Injection Molding Machine

Parameters of TH3380/SP Injection Molding Machine

Category: Injection Molding TH Excellence Series of Precision Injection molding machine

TH3380/SP injection molding machine adopts brand hydraulic and electrical system, its product performance is stable, and various engineering operations are simple, and it is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.

Add to quote

Details About TH3380/SP Injection Molding Machine

ITEMS

Units

TH3380/SP

A

B

C

D

INJECTION  UNIT

Screw Diameter

mm

200

210

220

230

Screw L/D Ratio

L/D

23.1

22.0

21

20.1

Theoretical injection Volume

cm3

39552.6

43606.8

47858.7

52308.3

Injection Weight (PS)

g

35992.9

39682.2

43551.4

47600.6

Injection Pressure

Mpa

171.1

155.2

141.4

129.4

CLAMPING  UNIT

Clamping Force

KN

33800

Clamping Stroke

mm

2150

Space Between Tie Bar

mm

2200×1950

Max. Mold Height

mm

2000

Min. Mold Height

mm

1000

Eject Stroke

mm

560

Eject Force

KN

568

OTHERS

Max. Pump Pressure

MPa

16

Approx. Motor Power

KW

228

Approx. Heat power

KW

211

Hopper Capacity

L

400

Dimensions

M

22.5×4.23×4.25

Approx. Machine Weight

T

297

Oil Tank Capacity

L

4500



Product Details

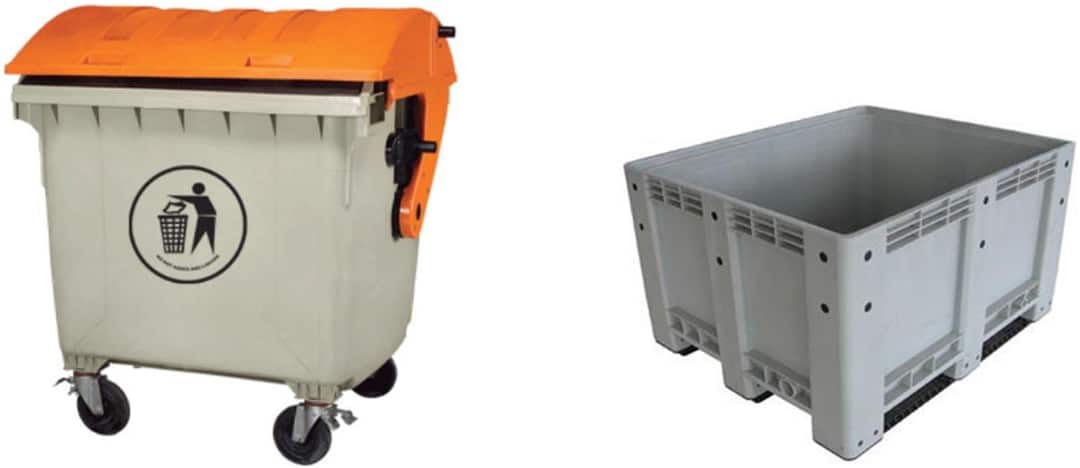

Project application: 1000 liters sanitation trash can Sanitation trash can is a one-time injection molding of molten plastic particles by injection molding machine equipment. Market prospects: The domestic waste treatment industry started late and has developed rapidly in recent years. The waste treatment industry has begun to take shape, the capacity of the waste treatment market has increased significantly, and the number of companies and dealers entering the sanitation industry has increased significantly. The garbage disposal market and the demand for sanitation trash cans have entered the growth period from the introduction period and gradually matured. With the national environmental protection form and the general direction of the government to create a national sanitation and civilized city, energy saving and environmental protection have become themes advocated by all walks of life.
