TH360/SP Injection Molding Machine
TH360/SP injection molding machine adopts brand name and is supplemented by precision hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
Add to quoteITEMS | Units | TH360/SP | |||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 65 | 70 | 75 |
| Screw L/D Ratio | L/D | 21.7 | 20.0 | 18.6 | |
| Theoretical injection Volume | cm3 | 995.5 | 1154.5 | 1325.4 | |
| Injection Weight (PS) | g | 905.9 | 1050.6 | 1206.1 | |
| Injection Pressure | Mpa | 207.1 | 178.6 | 155.6 | |
CLAMPING UNIT | Clamping Force | KN | 3600 | ||
| Clamping Stroke | mm | 690 | |||
| Space Between Tie Bar | mm | 680×680 | |||
| Max. Mold Height | mm | 700 | |||
| Min. Mold Height | mm | 280 | |||
| Eject Stroke | mm | 160 | |||
| Eject Force | KN | 111 | |||
OTHERS | Max. Pump Pressure | MPa | 17.5 | ||
| Approx. Motor Power | KW | 40.9/41.6 | |||
| Approx. Heat power | KW | 26.3 | |||
| Hopper Capacity | L | 50 | |||
| Dimensions | M | 6.9×1.72×2.4 | |||
| Approx. Machine Weight | T | 12.5 | |||
| Oil Tank Capacity | L | 550 | |||

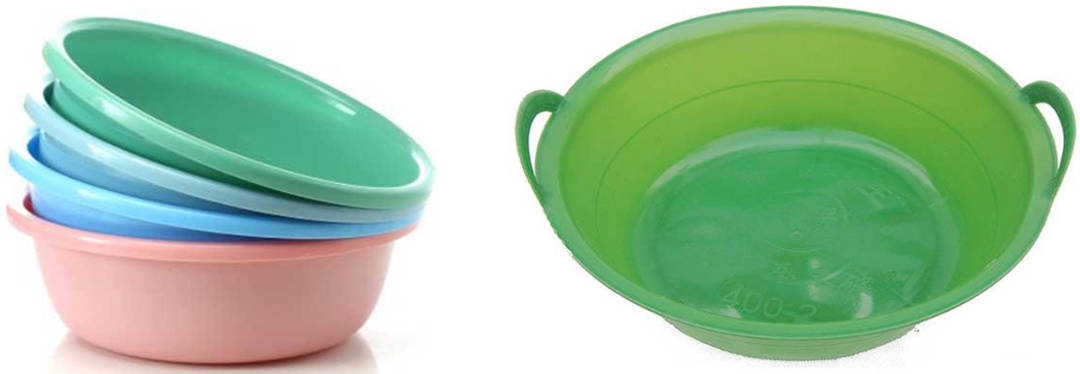

TH360/SP servo energy-saving injection molding machine can produce battery shells, household garbage baskets, plastic washbasins, auto interior accessories, small electric vehicle accessories, etc. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, and people's livelihood fields. TH360/SP fast servo energy-saving injection molding machine, fast speed, saving time and electricity, simple operation, full computer control, further enhance the competitiveness of customer products. This series of models adopts a double-cylinder balanced injection system. The injection control adopts a displacement sensor of a well-known foreign brand to accurately control the injection weight. The pre-molding adopts a five-star motor, which can realize stepless speed regulation. The servo drive system adopts the internationally renowned brand driver, and adopts the special control system for imported injection molding machine. The stroke is controlled by a displacement sensor, the stroke is accurate and reliable, and there are various ejection methods to choose from.
