TH4000/SP Injection Molding Machine

Parameters of TH4000/SP Injection Molding Machine

Category: Injection Molding TH Excellence Series of Precision Injection molding machine

TH4000/SP injection molding machine adopts well-known hydraulic and electrical systems, its product performance is stable, and various engineering operations are simple, and it is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. TH super series dedicated servo energy-saving injection molding machine is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.

Add to quote

Details About TH4000/SP Injection Molding Machine

ITEMS

Units

TH4000/91600

A

B

C

D

INJECTION  UNIT

Screw Diameter

mm

230

240

250

260

Screw L/D Ratio

L/D

23

22

21.2

20.3

Theoretical injection Volume

cm3

65603.5

71432.2

77508.9

83833.6

Injection Weight (PS)

g

59699.2

65003.3

70533.1

76288.6

Injection Pressure

Mpa

172.3

158.3

145.9

134.9

CLAMPING  UNIT

Clamping Force

KN

40000

Clamping Stroke

mm

2255

Space Between Tie Bar

mm

2400×2000

Max. Mold Height

mm

2100

Min. Mold Height

mm

1000

Eject Stroke

mm

560

Eject Force

KN

568

OTHERS

Max. Pump Pressure

MPa

16

Approx. Motor Power

KW

259/348.8

Approx. Heat power

KW

255

Hopper Capacity

L

400

Dimensions

M

23.3×4.2×4.25

Approx. Machine Weight

T

327

Oil Tank Capacity

L

7000

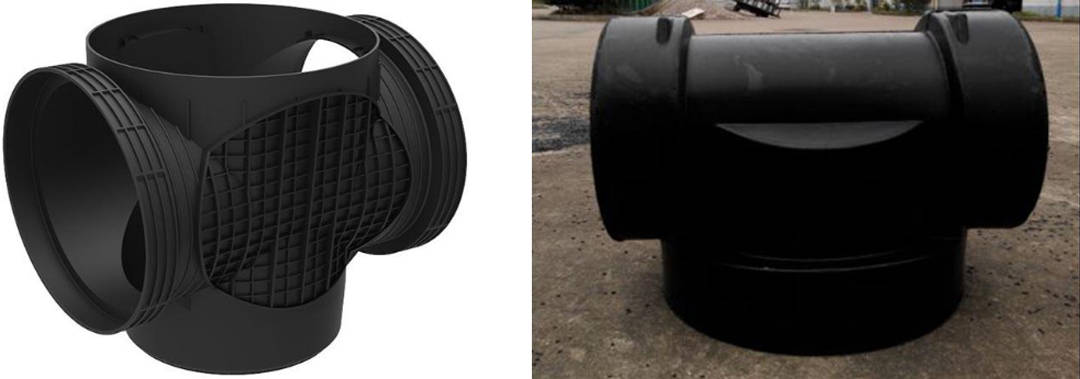

Project application: large plastic pipe fittings
