TH400/SP Injection Molding Machine
TH400/SP injection molding machine adopts brand and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
Add to quoteITEMS | Units | TH400/SP | |||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 70 | 75 | 80 |
| Screw L/D Ratio | 22.5 | 21 | 19.7 | ||
| Theoretical injection Volume | cm3 | 1347 | 1546.3 | 1759.3 | |
| Injection Weight (PS) | g | 1225.7 | 1407.1 | 1601 | |
| Injection Pressure | Mpa | 204.3 | 178 | 156.4 | |
CLAMPING UNIT | Clamping Force | KN | 4000 | ||
| Clamping Stroke | mm | 750 | |||
| Space Between Tie Bar | mm | 730×730 | |||
| Max. Mold Height | mm | 750 | |||
| Min. Mold Height | mm | 280 | |||
| Eject Stroke | mm | 200 | |||
| Eject Force | KN | 125 | |||
OTHERS | Max. Pump Pressure | MPa | 17.5 | ||
| Approx. Motor Power | KW | 47.2/50 | |||
| Approx. Heat power | KW | 30 | |||
| Hopper Capacity | L | 50 | |||
| Dimensions | M | 7.96×1.96×2.48 | |||
| Approx. Machine Weight | T | 14.7 | |||
| Oil Tank Capacity | L | 600 | |||

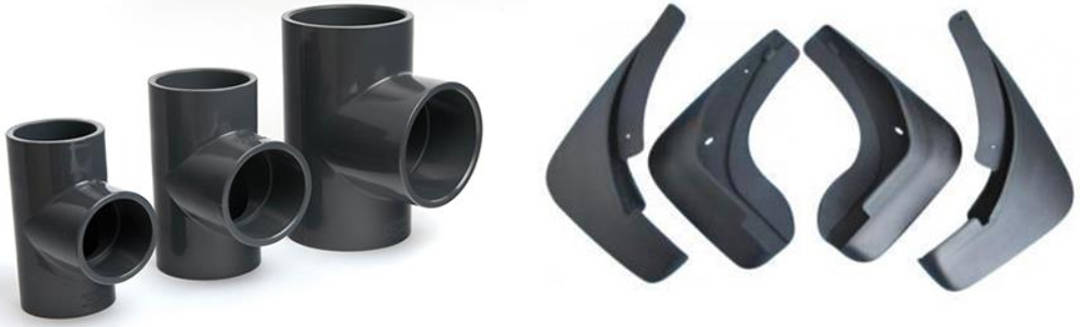

Our company's pipe fitting injection molding machine equipment TH400/SP servo energy-saving injection molding machine has many years of production experience and dozens of customer cases for PVC pipe fitting products and gas station composite pipe PE pipe fittings. The clamping mechanism of this series of models has a large depth and five fulcrum force-increasing design for the injection molding of pipe fittings, which is very suitable for the production of pipe fittings. The whole machine adopts well-known displacement sensors with strong precision, and other core system accessories such as solenoid valves and hydraulic pressure are also better than those in the same industry. Ten power consumption, the production cycle reaches two to three per minute. Our company's pipe fitting injection molding machine Tongjia surpasses series. In recent years, it has provided high-quality whole plant for natural gas pipeline transportation pipe fittings, household pipe fittings, gas station double-layer composite pipeline pipe fittings (double-layer direct, testing terminal, composite elbow, composite tee). Equipment and perfect after-sales service, welcome friends from all walks of life to visit our Tongjia Heavy Industry to inspect plastic pipe fittings injection molding machine equipment, and wholeheartedly analyze market dynamics and answer product development questions for you!
