TH630/SP Injection Molding Machine

Parameters of TH630/SP Injection Molding Machine

Category: Injection Molding TH Excellence Series of Precision Injection molding machine

TH630/SP injection molding machine adopts brand name and is supplemented by hydraulic system and electrical system. Its product performance is stable and various engineering operations are simple. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.

Add to quote

Details About TH630/SP Injection Molding Machine

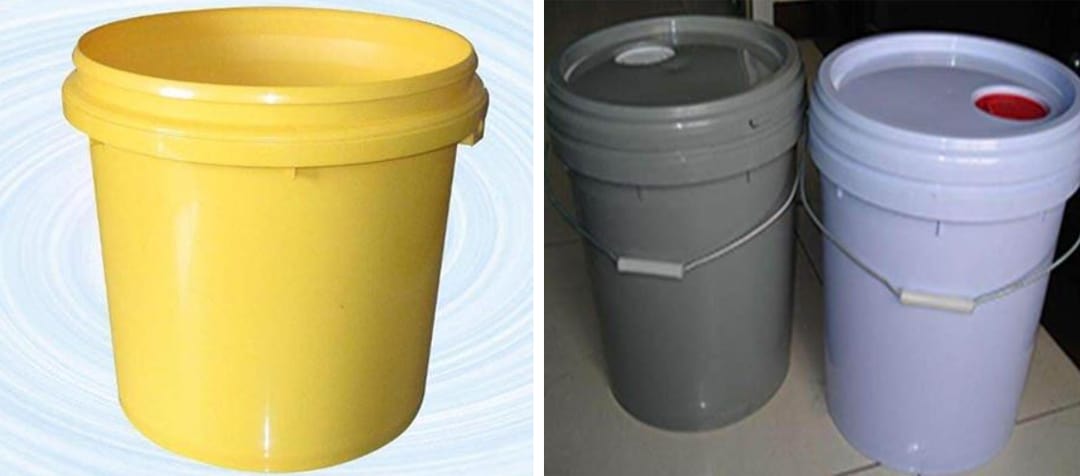

Paint drums, oil drums and common packaging drums on the market are all injection molding products that are molded by injection molding machines at one time. According to the use and quality requirements of the products, new raw materials, recycled materials and modified fiber materials can be used, and they are appropriately added according to the process formula. . Our company TH630/SP, TH730/SP servo energy-saving injection molding machine is a fast servo energy-saving injection molding machine specializing in the production of injection drums. From equipment recommendation to injection molding machine installation and debugging, to personnel training, it has provided an indispensable initial constructive role for small and medium-sized enterprises across the country, and provided high-quality products for the upgrading of injection molding machine equipment in large enterprises.
Market prospects: The traditional packaging form is iron drums, and its production process and application are extremely mature. It is widely used in petrochemical products, food packaging, especially specific oil drums and paint drums. With the rapid development of the petrochemical industry, plastic packaging containers with new packaging forms are tending to replace traditional metal containers. Due to their various advantages, plastic product manufacturers and end-user customers benefit.

ITEMS

Units

TH630/SP

A

B

C

INJECTION  UNIT

Screw Diameter

mm

80

85

90

Screw L/D Ratio

 L/D

23.4

22.0

20.8

Theoretical injection Volume

cm3

2241.8

2530.8

2837.3

Injection Weight (PS)

g

2040.1

2303.1

2582

Injection Pressure

Mpa

220.4

195.2

174.1

CLAMPING  UNIT

Clamping Force

KN

6300

Clamping Stroke

mm

900

Space Between Tie Bar

mm

880×880

Max. Mold Height

mm

900

Min. Mold Height

mm

400

Eject Stroke

mm

260

Eject Force

KN

182

OTHERS

Max. Pump Pressure

MPa

17.5

Approx. Motor Power

KW

61.7/62.8

Approx. Heat power

KW

41.6

Hopper Capacity

L

100

Oil Tank Capacity

L

900

Dimensions

M

9.7×2.06×2.74

Approx. Machine Weight

T

23.6

Product Details

1. The material of the iron drum is steel, and the steel plate is required to be flat and uniform in thickness. Compared with the plastic drum, it has better chemical resistance and process performance, but the probability of leakage is higher. The plastic barrel is made of high-molecular plastic HDPP. Compared with steel, its advantages are light weight, low cost, waterproof and moisture-proof. Due to one injection molding, the probability of leakage is much lower than that of iron barrels. The addition of modified materials With the improvement of injection molding process, the barrier properties, flexibility and impact resistance of the barrel body are also higher than that of steel, which is enough to bear the impact during packaging and normal transportation. 2. The process technology involved in the manufacturing process of iron drums is relatively complex, which requires sheet material uncoiling and leveling, welding edge processing, barrel body welding, barrel body flanging, barrel body expansion, roll packaging and packaging, barrel bottom cover forming and Pre-rolled, surface treated, painted on the inside and painted on the outside. The manufacture of plastic barrels is relatively simple, the surface printing treatment is relatively simple, and the appearance grade is relatively high. The production only requires one injection molding process, which greatly reduces the production cost. 3. The recycling and use of iron barrels also need to be returned to the furnace for steelmaking and recycling, while the plastic barrels only need to be crushed and cleaned, then re-injected and used, and the cost of recycling is much lower than that of iron barrels. With the rapid development of the plastics industry and the continuous introduction of various new technologies and new plastic materials, plastic packaging barrels conform to the national environmental protection development strategy in the packaging field, and the share and influence will continue to increase.
