TH820/SP Injection Molding Machine
TH820/SP injection molding machine adopts brand and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various projects are easy to operate. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
Add to quoteITEMS | Units | TH820/SP | |||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 90 | 100 | 110 |
| Screw L/D Ratio | L/D | 24.4 | 22.0 | 20 | |
| Theoretical injection Volume | cm3 | 3276.3 | 4044.8 | 4894.2 | |
| Injection Weight (PS) | g | 2981.4 | 3680.8 | 4453.7 | |
| Injection Pressure | Mpa | 231.1 | 187.2 | 154.7 | |
CLAMPING UNIT | Clamping Force | KN | 8200 | ||
| Clamping Stroke | mm | 1050 | |||
| Space Between Tie Bar | mm | 1020×1020 | |||
| Max. Mold Height | mm | 1020 | |||
| Min. Mold Height | mm | 450 | |||
| Eject Stroke | mm | 300 | |||
| Eject Force | KN | 182 | |||
OTHERS | Max. Pump Pressure | MPa | 17.5 | ||
| Approx. Motor Power | KW | 74/81.8 | |||
| Approx. Heat power | KW | 63.1 | |||
| Hopper Capacity | L | 100 | |||
| Oil Tank Capacity | L | 1150 | |||
| Dimensions | M | 11.3×2.32×2.86 | |||
| Approx. Machine Weight | T | 36 | |||
The servo energy-saving injection molding machine TH820/SP produced by our company can be used to produce large-scale turnover boxes, baby bathtubs, auto interior accessories, electric three-wheel door panels and other hot-selling plastic products in other industries.

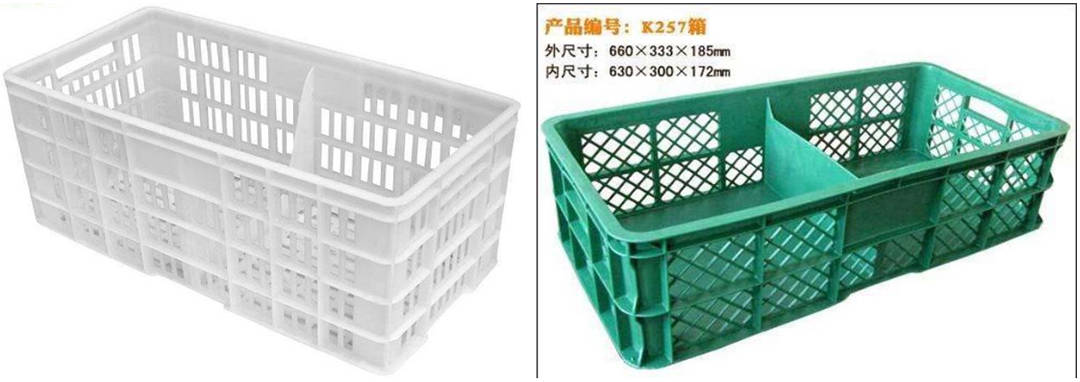

Case introduction: Large-scale plastic turnover boxes are widely used in various industries. The products are made of new polyethylene PE materials or recycled materials with appropriate addition of modified fiber materials, and one-time injection molding through the injection molding process. In recent years, the industrialization of new material plastic turnover boxes has benefited from the vigorous development of modern logistics. Our company's plastic turnover box injection molding machine equipment has played a key role in saving packaging costs and improving transportation efficiency for the logistics development of vegetable production bases, fruit industry areas, seafood transportation and other industries, and has been well received by customers and customer manufacturers.
