TH90/SP Injection Molding Machine
TH90/SP injection molding machine adopts brand name and is supplemented by hydraulic system and electrical system. Its product performance is stable, and various engineering operations are simple. It is widely used in aerospace, high-speed rail, automotive electronics, urban construction, people’s livelihood and other fields. This series of fast and precise servo energy-saving injection molding machines is equipped with a pressure feedback device with strong precision and sensitivity, forming a closed-loop precision control and providing customers with good product stability. Compared with traditional hydraulic presses, it shows stronger injection stability, greatly improves the qualified rate of molded products, saves energy and protects the environment, responds quickly, effectively shortens the cycle, and improves production efficiency.
Add to quoteITEMS | Units | TH90/SP | |||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 28 | 32 | 35 |
| Screw L/D Ratio | L/D | 22.9 | 20.0 | 18.3 | |
| Theroy Injection Volume | cm³ | 88.7 | 115.8 | 138.5 | |
| Injection Weight(PS) | g | 80.7 | 105.4 | 126.1 | |
| Injection Pressure | Mpa | 251.1 | 192.3 | 160.7 | |
CLAMPING UNIT | Clamping Force | KN | 900 | ||
| Clamping Stroke | mm | 330 | |||
| Space Between Tie Bars | mm | 320×320 | |||
| Max. Mold Height | mm | 330 | |||
| Min. Mold Height | mm | 120 | |||
| Enject Stroke | mm | 80 | |||
| Enject Force | KN | 29 | |||
OTHERS | Max. Pump Pressure | MPa | 17.5 | ||
| Pump Motor Power (Approx.) | KW | 10.5/11.1 | |||
| Heat Power (Approx.) | KW | 4.9 | |||
| Hopper Volume | L | 25 | |||
| Oil Tank Volume | L | 160 | |||
| Dimensions | M | 3.9×1.19×1.8 | |||
| Machine Weight (Approx.) | T | 3 | |||

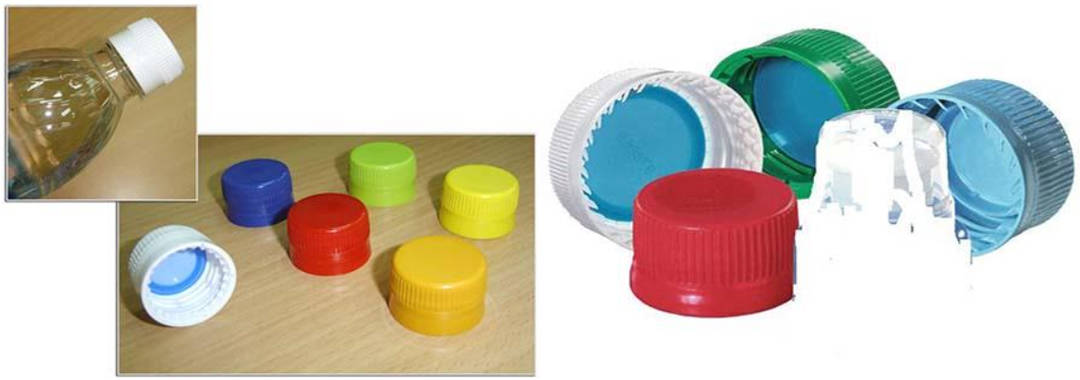

TH90/SP servo energy-saving injection molding machine mainly produce threading boxes, different caps, electronic accessories, electrical buttons, medical plastic parts, and other small industry parts products. This series of models is fast, time-saving and power-saving, easy to operate, and fully controlled by a computer, which enhances the competitiveness of customers' products. This series of models adopts a double-cylinder balanced injection system. The injection control adopts a displacement sensor of a famous foreign brand to accurately control the injection weight. The pre-prefabricating adopts a five-star motor, which can adjust the speed infinitely. The servo drive system adopts the internationally renowned brand driver, the mold clamping part has good rigidity, high-speed mold closing is stable, low-pressure mold retention is accurate. It's very suitable for small injection products.
